Price
599,00
incl. TAX
Quantity

The device designed for automotive electronics.

This device is used to create a car installation on your table.

 Ecu Connector is an intermediate device for other tools with this device. You can connect different types of controllers: ECU, BSI, UCH, EZS, CAS, counters, a key loop, etc. On the other side, you can connect the OBD2 tool, such as Magpro2, Avdi, Smok, Bosch KTS, Renault Clip, etc.

After creating the appropriate connection configurations you can do:

- Key coding

- Make synchro between the Dashboard and ECU

- Faults code diagnostic, etc.

With an additional OBD2 socket you can analyze the communication CAN, K-line, etc.

Thanks to this device nothing will surprise you.

The pinout is placed on the device and all wires in the bundle are described. Connection diagrams can be found in popular programs such as AUTODATA, ESI Tronic, Hella.

The device is manufactured in our company and each is tested on an especially boiled test stand.


Set contains:

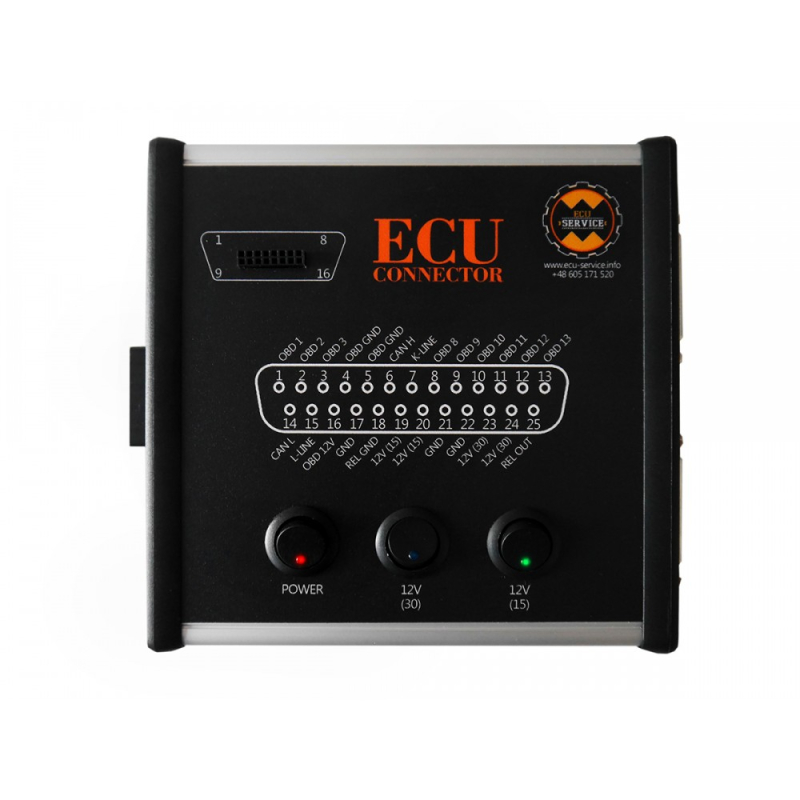

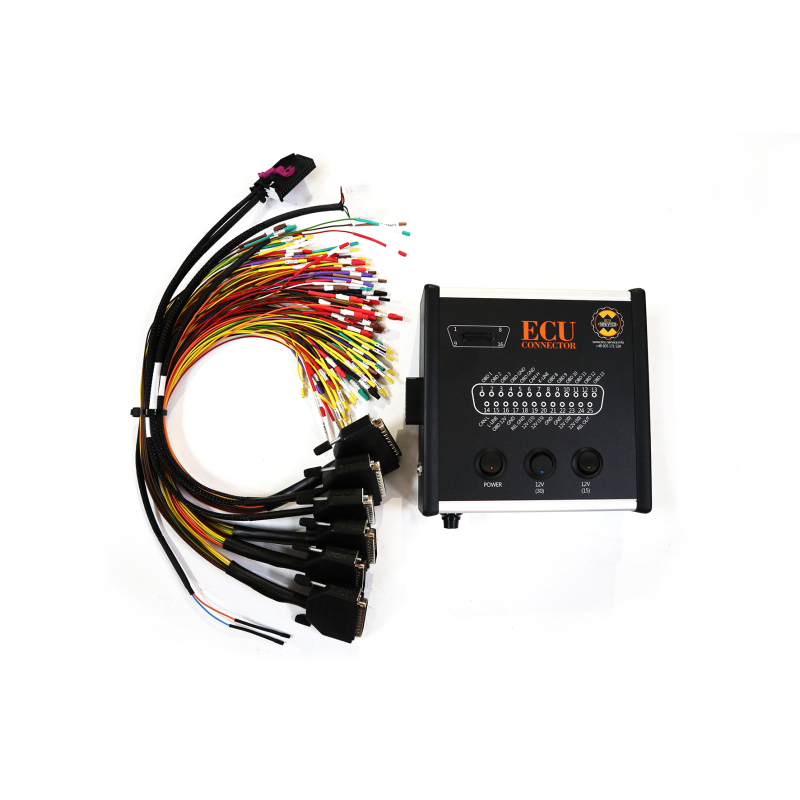

Ecu Connector - device Image title

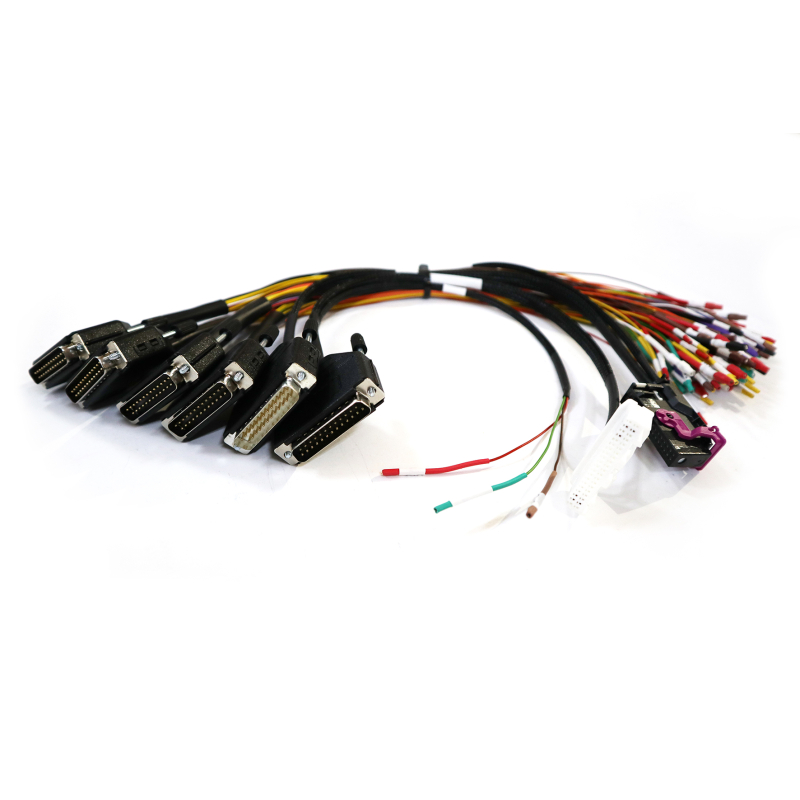

4x DB25 connector (cables)
Image title

VAG NEC Cluster Testing Platform Image title

Renault UCH Johnson Control testing platform
Image title





Sample connections:


Renault Clio 3 key coding



Simulation of the BMW Steering Wheel Lock





ECU diagnosis





Technical data:

Power supply 12V min. 3A

Protection against reverse polarity

1x Built-in relay

OBD2 socket for scan tool, etc.

OBD2 socket to connect the analyzer


*Keys, dashboards, counters, various types of drivers ECU used for the presentation shown in the pictures are not included in the set.


The product made and developed by ECU SERVICE.
