Mercedes A W169, B W245, C W202, CLK W208, E W210, ML W163, SLK R170, VITO W638, Airbag seat sensor - PINS - UNIVERSAL

Price
36,00
incl. TAX
Quantity

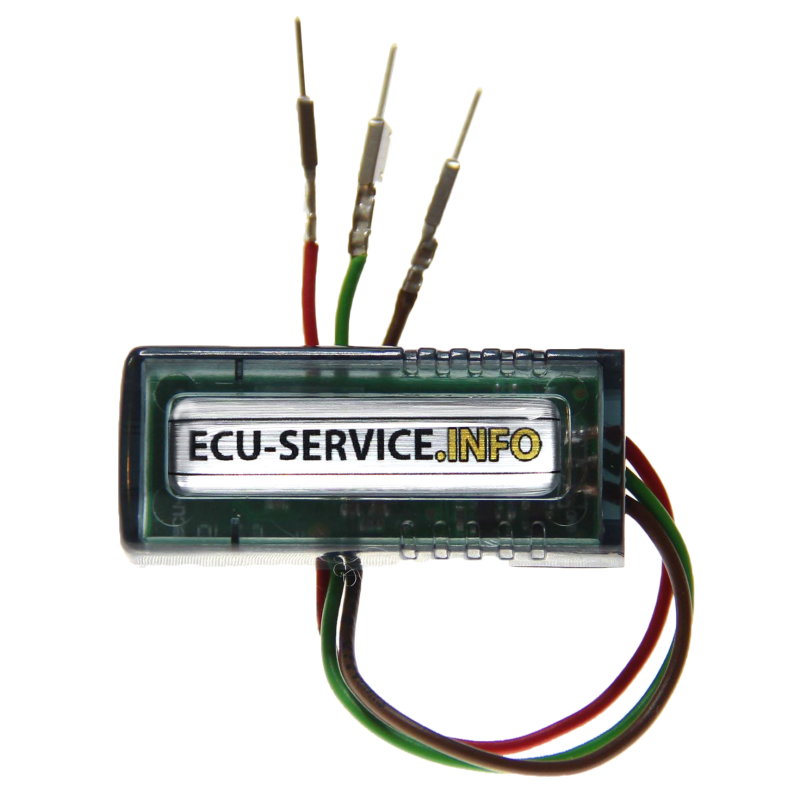

Mercedes A W169, B W245, C W202, CLK W208, E W210, ML W163, SLK R170, VITO W638, Airbag seat sensor EMULATOR

+ GRATIS

SEAT BELT SIMULATOR


Supported cars MERCEDES European version::

A W169 FROM 2004-2012

B W245 FROM 2004-2008

C W202 FROM 1997-2001

CLK W208 FROM 1997-2003

E W210 FROM 1995-2003

ML W163 FROM 1998-2005

SLK R170 FROM 1996-2004

VITO W638 FROM 1995-2003


Thanks to this emulator you can check the correctness of the action of the airbag seat sensor. The emulator is used for diagnostic purposes.


Seat Occupancy Sensor Emulator is used to diagnose damage in the SRS system and allows you to confirm or exclude damage to the mat in the passenger seat.

The emulator connected in place of the original mat sends information to the airbag controller that:

* There is a working mat in the seat

* A passenger sitting on the seat


The emulator should be connected to the car's installation in place of the damaged mat. Find the seat mat connector under the passenger seat, remove the mat wires from the plug and check which ground, signal and power are. Then swap them with the emulator wires.

Cable marking:

Brown - GND (ground)

Green - signal

Red - 12V (power)

Before connecting the emulator use multimeter to check the correct power supply 12V, GND and signal.


Belt emulator is used to diagnosing damage in the SRS system and allows you to confirm or exclude damage to the seat belt buckle in the passenger seat.


Installation instructions:

- under the passenger seat, find the plug with two wires going to the seat belt buckle (yellow and blue)

- unlock the latch and pull the plug out of the connector

- insert the pins from the emulator into the plug socket

- insert the plug back into the connector


Do not place the child seat on the front passenger seat. Passenger airbag during a collision will open.


The product made and developed by ECU SERVICE
