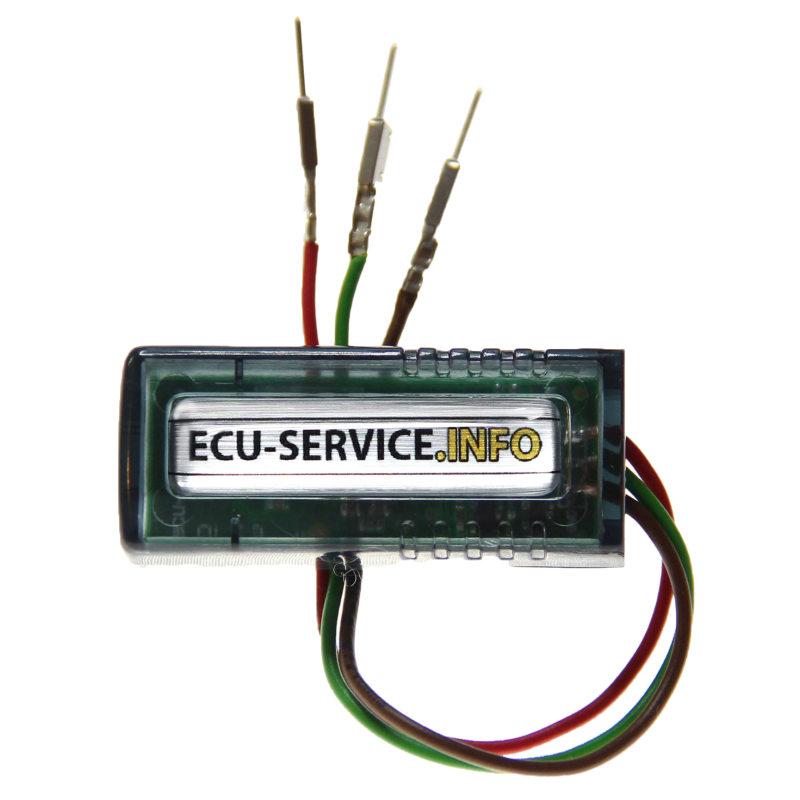

Mercedes W205, ML W166, ML W164, SLK R172, R W251, CLS W219, C W203, E W211, SLK R171, S W221, GL X164, C w204, E W212, S212, C207, A207 Airbag seat sensor emulator
+ GRATIS
SEAT BELT SIMULATOR
Supported cars MERCEDES European version::
W205 2015+
ML W166 2011- 2015
ML W164 2005+
SLK R171 2004-2011
SLK R172 2011+
R W251 2004+
CLS W219, C219 2004-2010
C W203 2004 - 2007
C W204 from 2007-2014
E W211 2002-2009
E W212, S212, C207, A207 + 2013
S W221 2005-2013
GL X164 2005+
Thanks to this emulator you can check the correctness of the action of the airbag seat sensor. The emulator is used for diagnostic purposes.
Seat Occupancy Sensor Emulator is used to diagnose damage in the SRS system and allows you to confirm or exclude damage to the mat in the passenger seat.
The emulator connected in place of the original mat sends information to the airbag controller that:
* There is a working mat in the seat
* A passenger sitting on the seat
The emulator should be connected to the car's installation in place of the damaged mat. Find the seat mat connector under the passenger seat, remove the mat wires from the plug and check which ground, signal and power are. Then swap them with the emulator wires.
Cable marking:
Brown - GND (ground)
Green - signal
Red - 12V (power)
Before connecting the emulator use multimeter to check the correct power supply 12V, GND and signal.
Belt emulator is used to diagnosing damage in the SRS system and allows you to confirm or exclude damage to the seat belt buckle in the passenger seat.
Installation instructions:
- under the passenger seat, find the plug with two wires going to the seat belt buckle (yellow and blue)
- unlock the latch and pull the plug out of the connector
- insert the pins from the emulator into the plug socket
- insert the plug back into the connector
Do not place the child seat on the front passenger seat. Passenger airbag during a collision will open.
The product made and developed by ECU SERVICE
