BMW E60 E63 E64 E65 E70 E71 E81 E82 E85 E87 E88 E90 E91 E92 E93 Airbag seat sensor - PLUG - UNIVERSAL

Price
40,00
incl. TAX
Quantity

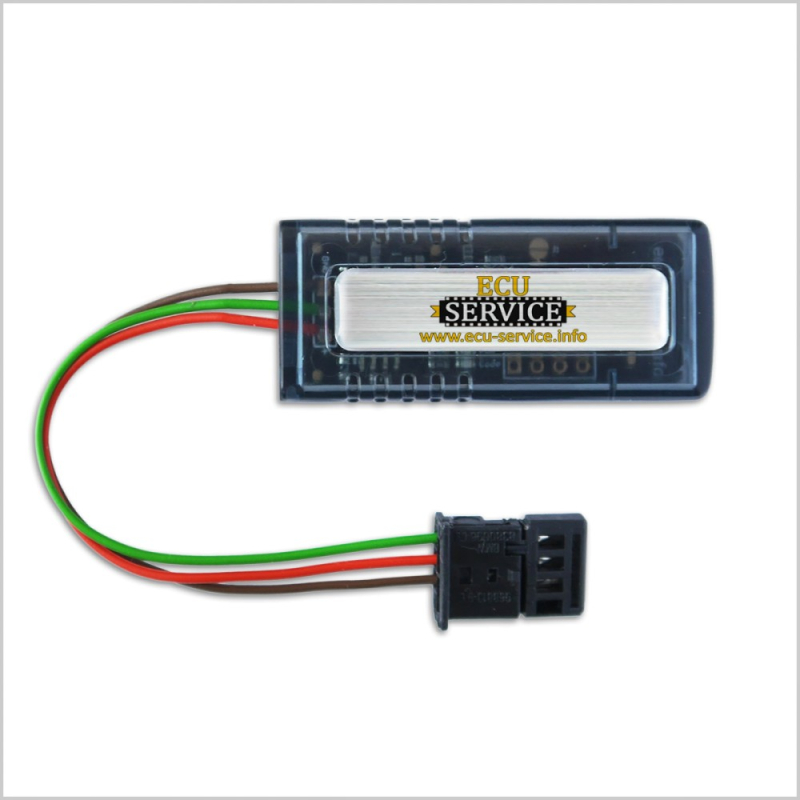

BMW E60 E63 E64 E65 E70 E71 E81 E82 E85 E87 E88 E90 E91 E92 E93

+ GRATIS

SEAT BELT EMULATOR


Supported cars BMW European version:

E60 FROM 2005-2010

E63 FROM 2005-2010

E64 FROM 2005-2010

E65 FROM 2005-2008

E81 FROM 2007-2011

E82 FROM 2007-2013

E85 FROM 2006-2009

E87 FROM 2004-2011

E88 FROM 2007-2014

E90 FROM 2005-2011

 E91 FROM 2005-2011

 E92 FROM 2007-2011

 E93 FROM 2007-2013


Thanks to this emulator you can check the correctness of the action of the airbag seat sensor. The emulator is used for diagnostic purposes.


Seat Occupancy Sensor Emulator is used to diagnose damage in the SRS system and allows you to confirm or exclude damage to the mat in the passenger seat.


The emulator connected in place of the original mat sends information to the airbag controller that:
* There is a working mat in the seat
* A passenger sitting on the seat

The emulator should be connected to the car's installation in place of the damaged mat. Find the seat mat connector under the passenger seat and connect the plug to the car's installation.
Cable marking:
Brown - GND (ground)
Green - signal
Red - 12V (power)

Before connecting the emulator use multimeter to check the correct power supply 12V, GND and signal.


Belt emulator is used to diagnosing damage in the SRS system and allows you to confirm or exclude damage to the seat belt buckle in the passenger seat.


Installation instructions:
- under the passenger seat, find the plug with two wires going to the seat belt buckle (black and red)
- unlock the latch and pull the plug out of the connector
- insert the pins from the emulator into the plug socket
- insert the plug back into the connector

Do not place the child seat on the front passenger seat. Passenger airbag during a collision will open.


The product made and developed by ECU-SERVICE.
